Seamless Water Texture: Tile Oceans Without the Grid

8 min read · Last updated May 2026

Photorealistic 3D render of a calm ocean surface with gentle tiling ripples reflecting a bright sky, stretching to the horizon with no visible repeating pattern
One small water normal map, an entire ocean, no visible repeat — and ripples that flow. That’s seamless water done right.

You know that feeling when your lake or ocean looks like a sheet of blue plastic? Water is the trickiest common surface because it’s barely a texture at all — it’s mostly reflection, refraction, and motion. A seamless water texture gives the shader its foundation: a tileable normal map of ripples that wraps cleanly and flows without an obvious grid.

Water leans far more on the shader than on a colour map, but it still starts with a seamless, tileable normal. This guide covers what makes water seamless, why it goes plastic, and how to get a proper water set.

Why water is mostly a shader, not a texture

Most materials are defined by their colour and surface maps. Water is defined by what it does to light: it reflects the sky, refracts what’s below, and its colour comes from depth, not a painted albedo. So a water material is mostly a shader — reflection, refraction, transparency, depth-based colour, foam — built on top of one crucial texture: a tileable normal map of ripples that bends the reflection convincingly.

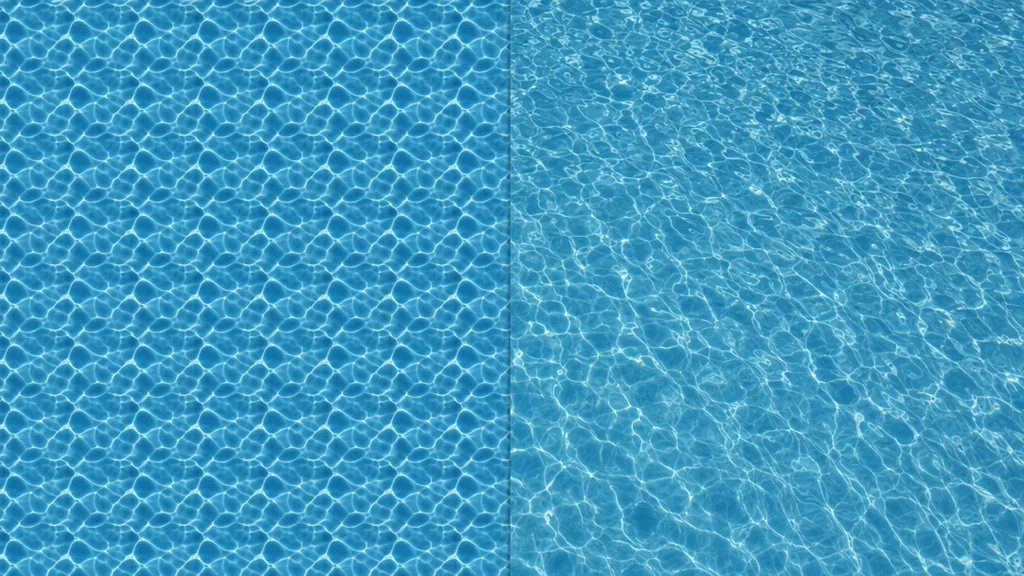

Side-by-side water surface comparison — left half shows an obvious repeating grid of identical ripples tiling regularly, right half tiles cleanly with natural varied ripples
Left: identical ripples repeating every tile. Right: the same water with varied, flowing ripples and no tell. The normal map is the whole game.

Why water looks like blue plastic (and how to fix it)

  1. Solid blue albedo. Water’s colour comes from depth and what’s below, not a painted blue. A flat blue base reads as plastic.
  2. No normal ripples. Without a tileable normal map the surface is mirror-flat and dead.
  3. Roughness too high. Water is near-mirror; a high roughness blurs the reflection into milk.
  4. No movement. Still water looks frozen. Real water scrolls its normals so the ripples drift.
  5. No reflection to catch. Water with nothing to reflect — no sky, no probe — looks black and dead.

The fix is a tileable normal map, very low roughness, high reflectivity, transparency with depth-based colour, and scrolling animation — handled in the shader, founded on the seamless normal.

The maps a water material needs

  • Normal (tileable) — the ripples; the single most important map. (See what a normal map is.)
  • Roughness — very low and slightly varied, for sharp reflections with a little break-up. (See what a roughness map is.)
  • Colour / tint — subtle; most of the colour comes from depth in the shader.
  • Foam, flow, caustics — masks and maps the shader uses for surf, direction, and underwater light.

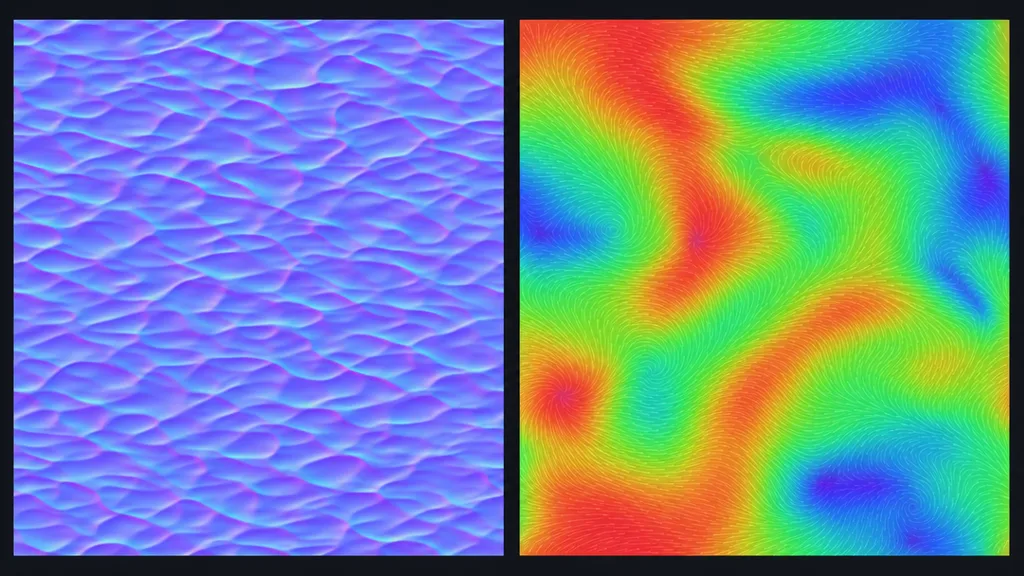

Two tiles side by side — a tileable blue-purple water ripple normal map on the left and a colourful flow map on the right that steers the ripple direction
The tileable ripple normal map (left) and a flow map (right) that steers the scrolling around obstacles for rivers and shorelines.

Animating water: scroll the normals

Still water looks frozen, so water shaders scroll the normal map over time — almost always two copies at different speeds and directions, blended, so the ripples never look like they repeat. The colour and roughness usually stay put; only the normals move. For rivers, a flow map steers that scrolling so water rushes around rocks and down channels instead of sliding sideways.

Three ways to get a seamless water texture

1. Derive a tileable normal from a photo

Take a top-down water-ripple photo, offset it by half (Photoshop: Filter › Other › Offset, wrap-around), heal the seam, and convert it to a tileable normal map. Keep the colour map subtle. Free, and a good base for a custom water shader.

2. Download a CC0 set

Poly Haven, ambientCG, and similar libraries give you ready-made seamless water normal maps and materials under CC0. Fast, with one limit: you get the wave scale that exists. Calm-versus-choppy or a specific ripple size may not be in the catalogue.

3. Generate it from a prompt

Describe the water — “calm lake with fine ripples” — and let AI build a tileable, normal-led set already wrapped. CraftPBR generates the surface and derives a matching normal and roughness, made seamless together, ready to drop into a water shader. You get the exact ripple scale you described, in about a minute — the same text to texture workflow, pointed at water.

A row of five water surface swatches — calm lake, choppy ocean waves, flowing river, still puddle, and a clear swimming pool
Calm lake, ocean chop, river flow, puddle, pool. The water you need is rarely the one in the library — describing it beats hunting.
Generate seamless water in seconds
Describe any water surface, get a tileable normal-led set for your water shader. Free.
Open Studio →

Killing the grid: break up the repetition

  • Blend two scrolling normals at different scales, speeds, and directions so no single ripple pattern repeats.
  • Add a large-scale wave normal on top of the fine ripples for ocean swell.
  • Use a flow map so direction varies across the surface instead of uniform sliding.
  • Vary roughness subtly so the reflection isn’t perfectly uniform.

For the full anti-repetition toolkit across every material, the seamless tileable textures guide goes deep.

Seamless water in Unity, Unreal, Blender, and Godot

  • Unity — most use a water shader (HDRP Water, or assets) fed a tileable normal; import normals as linear, OpenGL convention, with scrolling UVs.
  • Unreal — the Water plugin or a custom material with scrolling normals, reflection, and refraction; Unreal expects DirectX normals — flip green if authored OpenGL.
  • Blender — a Principled BSDF with high transmission, low roughness, and a scrolling normal via mapping nodes; OpenGL normals.
  • Godot — a custom shader or a water asset with a tileable normal and time-scrolled UVs; OpenGL normals.
A game environment of a tropical lagoon with clear turquoise water, gentle ripples reflecting the sky, white sand below, and palm trees on the shore
Clear lagoon water from a tileable normal plus a depth-coloured, scrolling water shader. Water is mostly shader — the seamless normal is its foundation.

Key takeaways

  • Water is mostly a shader — reflection, refraction, depth colour — built on one tileable normal map
  • The “blue plastic” look is a solid albedo, no ripples, high roughness, and no movement
  • Water’s colour should come from depth in the shader, not a painted blue base
  • Animate by scrolling two blended normal copies; use a flow map for rivers
  • Keep roughness very low for sharp reflections, and give the water something to reflect
  • The tileable normal imports into any engine — mind the OpenGL/DirectX convention

Frequently asked questions

What is a seamless water texture?

A seamless water texture is a water surface set — usually a tileable normal map plus colour and roughness — that repeats in every direction with no visible edges. Laid across a lake, ocean, or puddle, it tiles cleanly so a single map can cover a huge surface, and the ripples flow without an obvious grid.

Why does my water look like flat blue plastic?

Water is mostly reflection and refraction, not colour. If you give it a solid blue albedo and no normal map, it reads as plastic. Real water needs a tileable normal map for ripples, very low roughness for sharp reflections, high reflectivity, and ideally transparency with a depth-based colour — the blue comes from depth, not the surface.

How do you animate a seamless water texture?

Scroll the normal map over time, usually two copies at different speeds and directions blended together, so the ripples never look like they repeat. A flow map can steer the scrolling around obstacles for rivers. The colour and roughness usually stay still; only the normals move.

What maps does a water material need?

A tileable normal map is the most important — it carries the ripples. Add a low, slightly varied roughness for the sharp-but-not-mirror reflection, a subtle colour or tint, and often a foam mask, a flow map for direction, and caustics for the light patterns underwater. Water leans far more on the shader than on a colour texture.

Where can I get free seamless water textures?

CC0 libraries like Poly Haven and ambientCG offer free seamless water normal maps and materials. The catch is matching what exists — a specific wave scale, calm versus choppy, may not be in the library. AI generators like CraftPBR let you describe the exact water surface and export a tileable normal-led set instead of hunting.

Do seamless water textures work in Unity, Unreal, and Blender?

Yes, though water is usually a dedicated shader rather than a plain material. The tileable normal map imports into any engine; you then add scrolling, reflection/refraction, transparency, and foam in the water shader. Use the right OpenGL or DirectX normal convention for your engine.
